HARDWARE

X1 Full-Scale Drilling Simulator

Name: X1 Simulator
Brand: Endeavor

Immersive, multi-station simulation for operational crew readiness.

Bring drillers, supervisors, and instructors into one room-scale simulator. Rehearse drilling, well control, and intervention workflows with physical controls and linked crew stations.

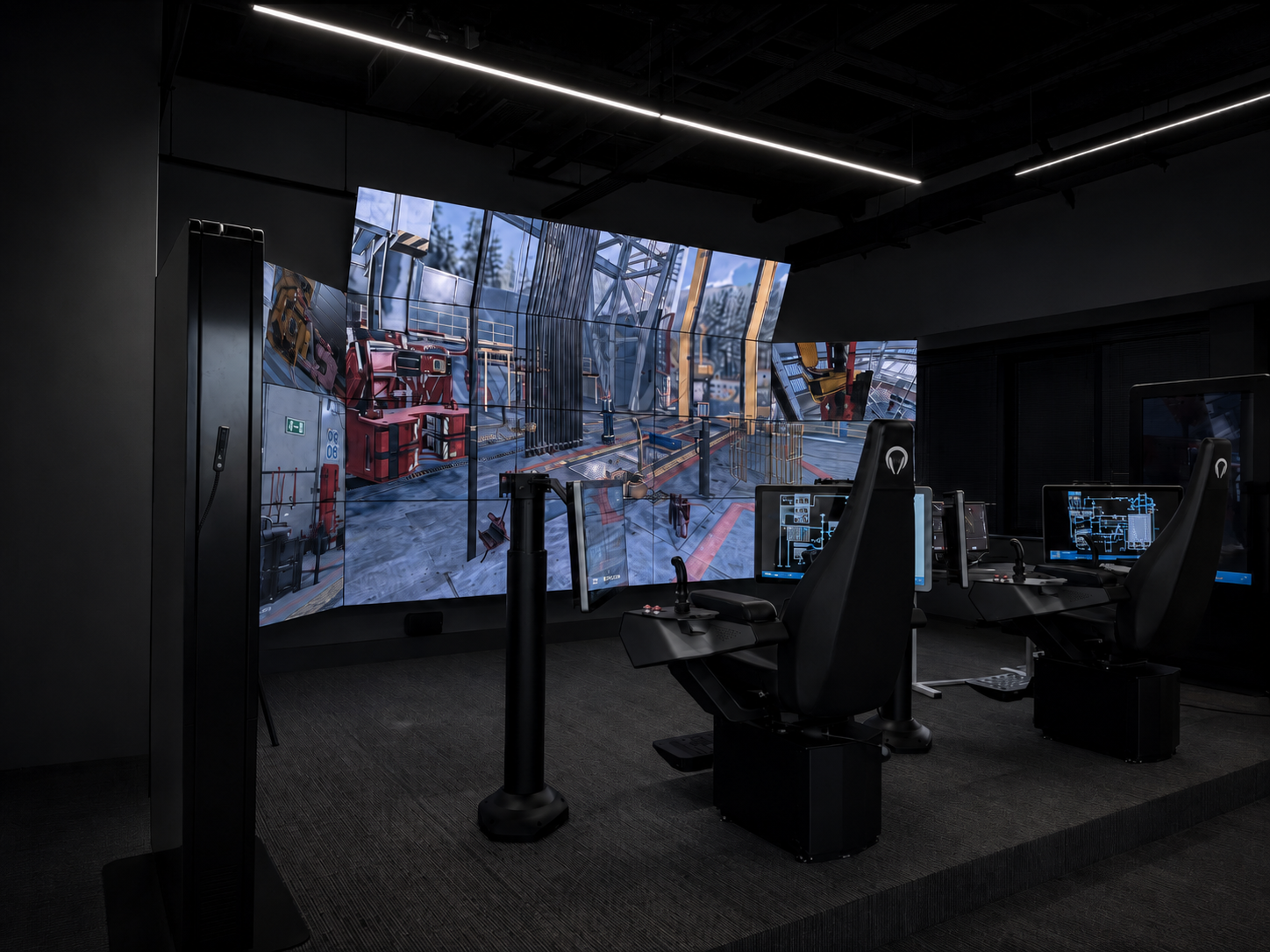

Endeavor X1 drilling simulator training room

OPERATIONAL READINESS

Step into the operation.

Train crews against live system response, dynamic consequences, and changing well conditions.

Build training around the decisions your crews face: operating sequences, changing well conditions, communication, and recovery. X1 combines full-scale immersion with linked stations so participants work through the same operation.

RuntimePhysics™ on EndeavorTech.com ↗→ See All Deployments

Multi-Discipline Library

Drilling, well control, MPD, intervention, wireline, coiled tubing, cementing, and more.

No Pre-Recorded Events

Conditions change because the simulated well changes—not because a script advances.

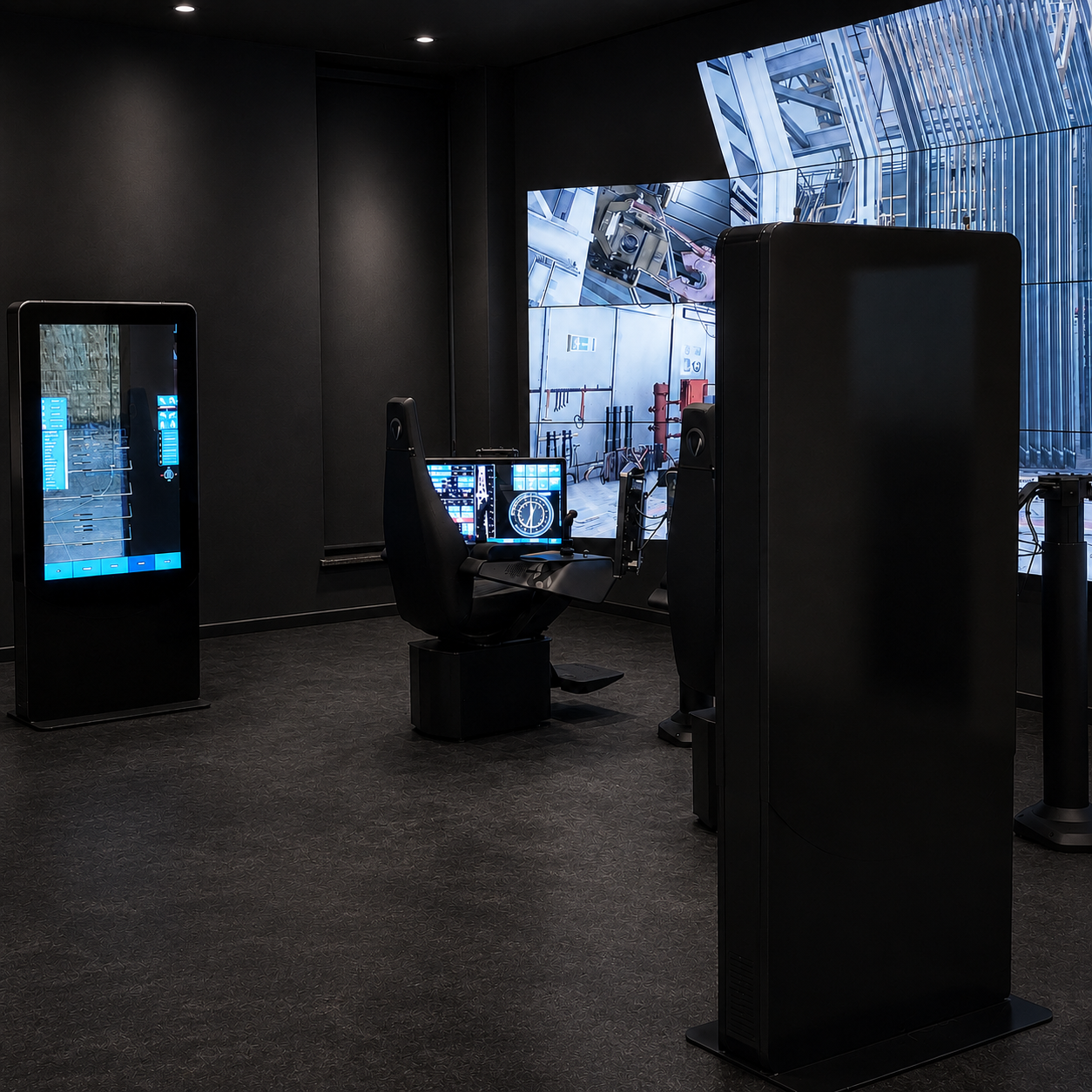

Unified Crew Interoperability

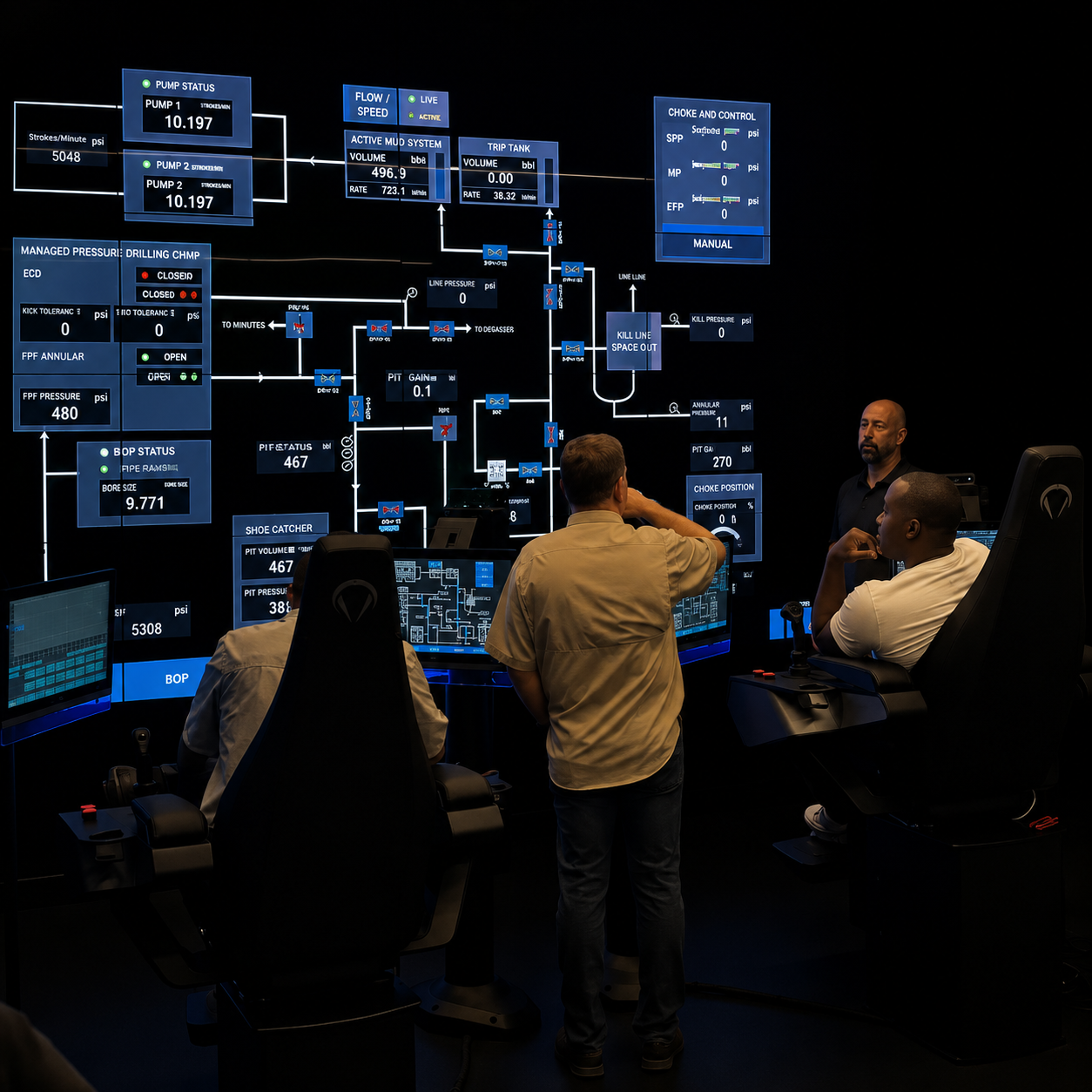

Link drillers, supervisors, and operations in one high-consequence scenario.

Operational Advantage

Train the crew as one team.

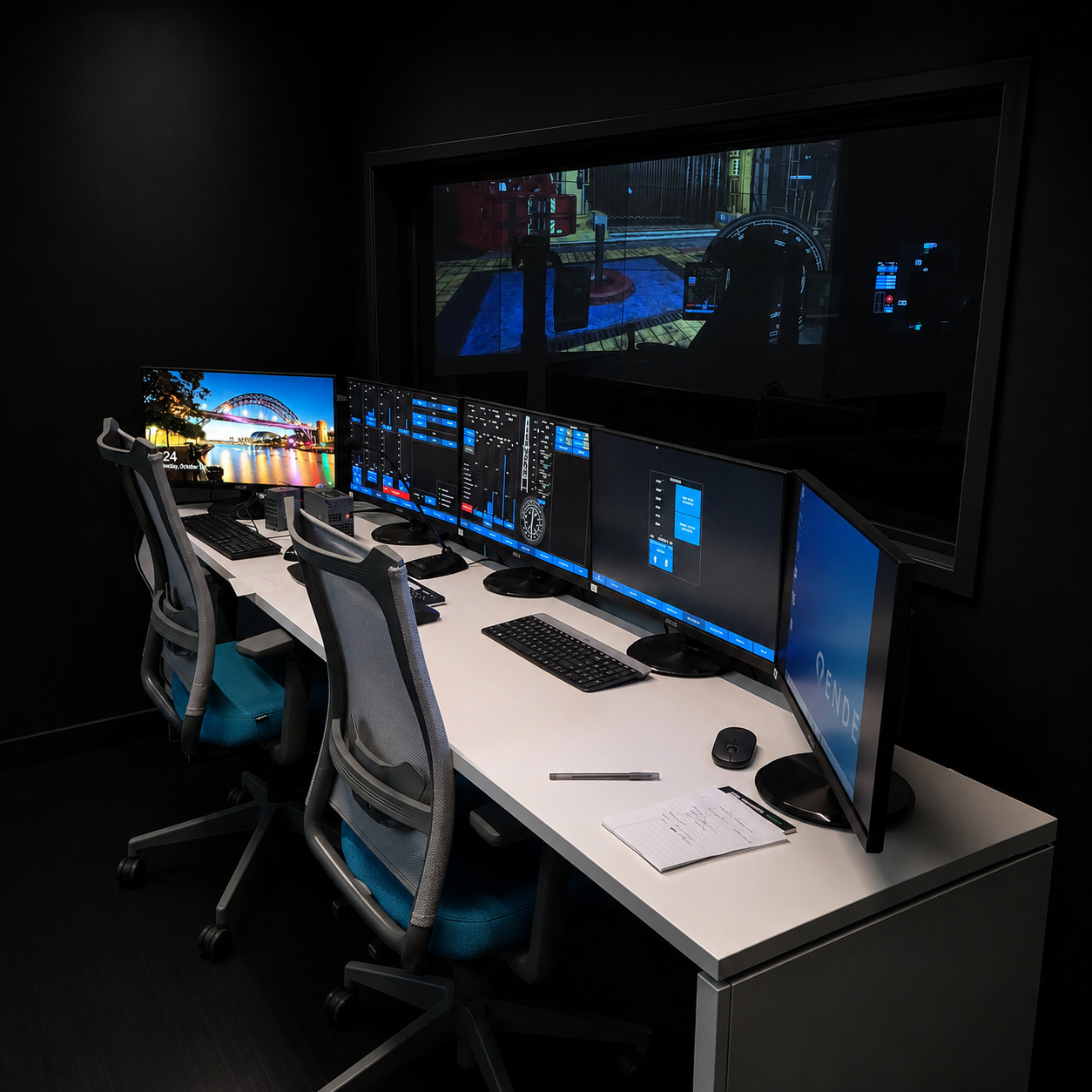

Give instructors a controlled environment for crew practice and assessment. Rehearse handovers, coordinate response, and review how operating decisions affect the well before crews return to the field.

Incident Prevention

Identify competency gaps and rehearse critical responses before field deployment.

Fleet-Wide Consistency

Standardize crew response and decision-making across locations.

Unified Crew Training

Train linked roles together under alarm, time pressure, and changing well conditions.

Certification Ready

Support IADC/IWCF-aligned training and performance-based verification.

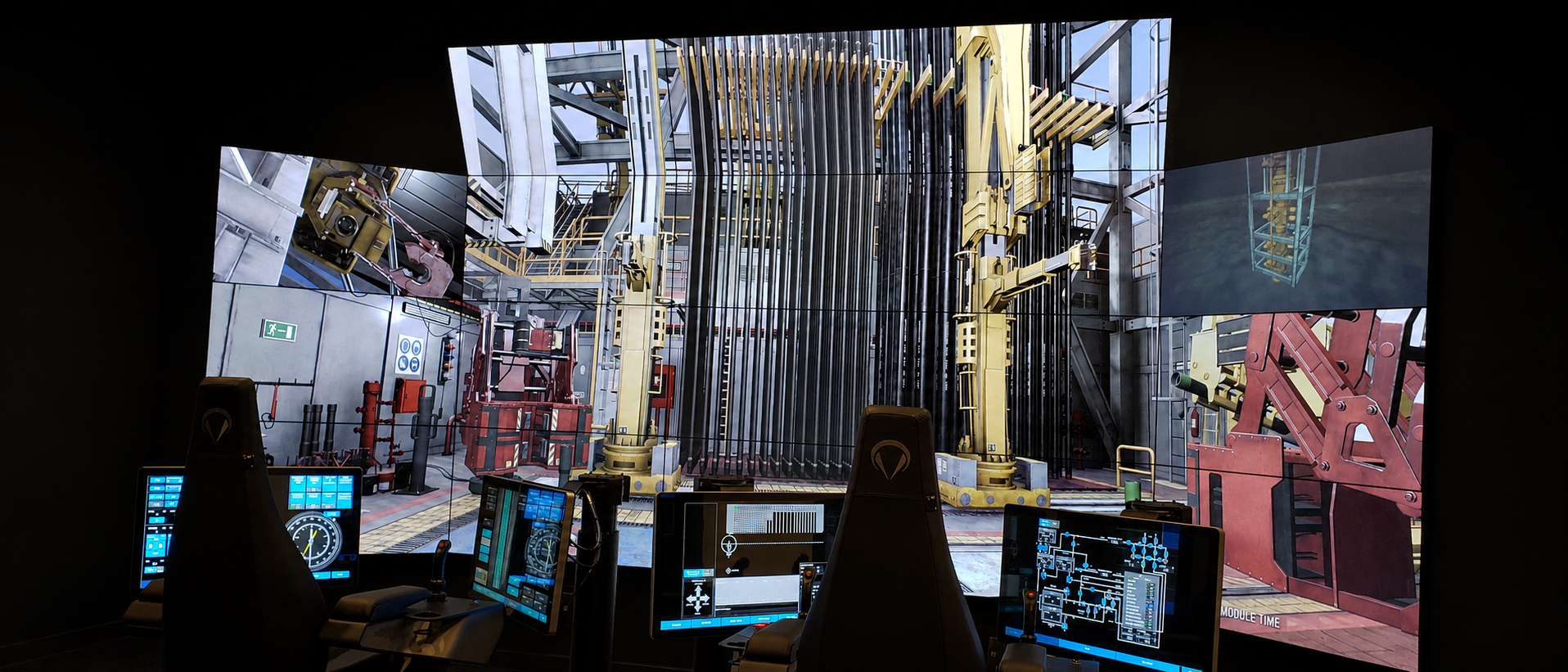

X1 immersive simulator training environment

SPECIFICATIONS

Technical Specifications

→ Download X1 Datasheet

Package Configuration

Component	Details
Primary Operator Station	Industrial grade operator chair with integrated armrest controls
Secondary Operator Station	Optional: second operator chair with integrated armrest controls
Visual System	Custom configurations using commercially available LED displays

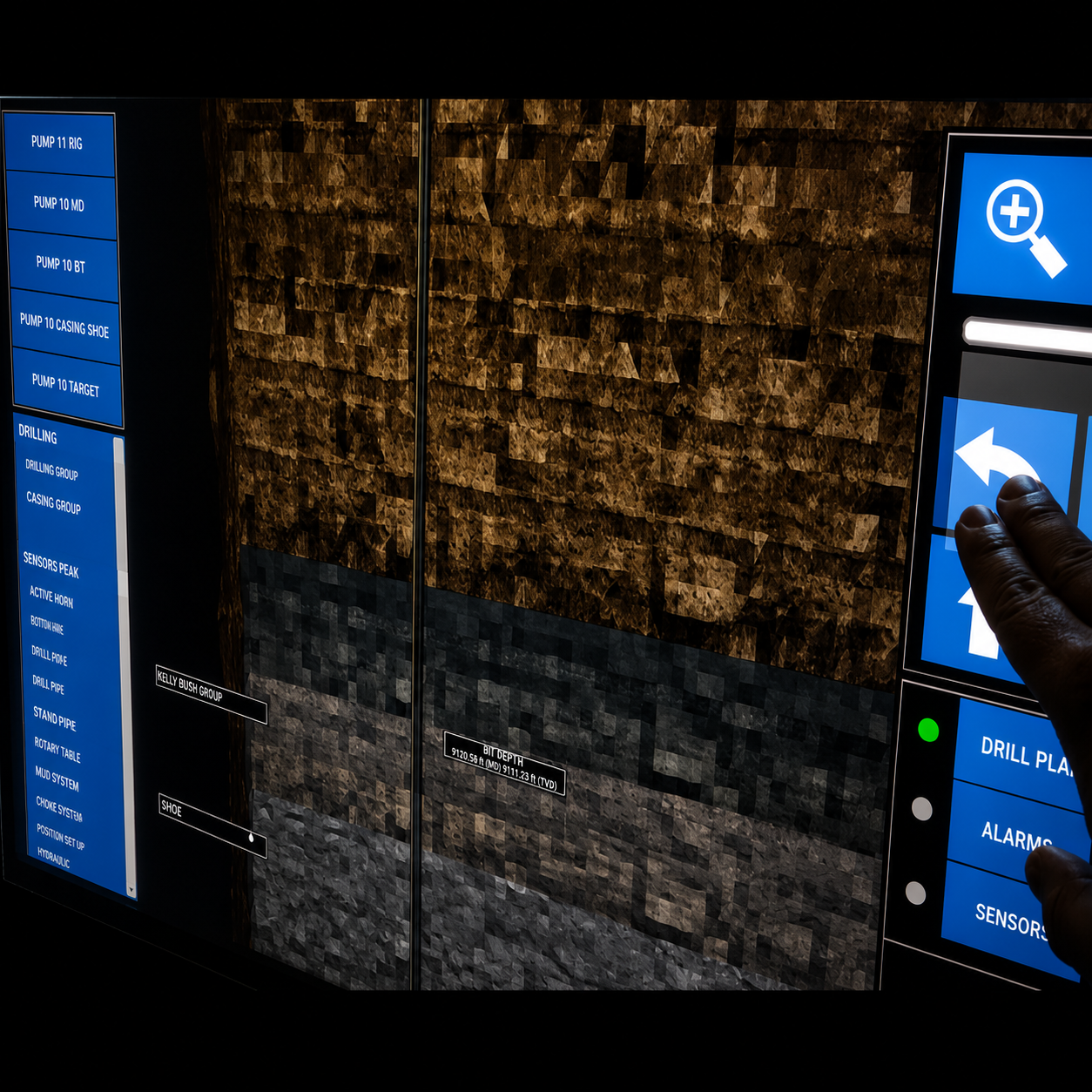

Auxiliary Displays	Interactive 55 or 70 inch free standing touchscreen monitor(s)
Computing Core	Single dedicated high-performance simulation PC

Operator Console (Armrests)

Feature	Specification
Left Armrest	Integrated multi-axis joystick + 10 point touch screen
Right Armrest	Integrated multi-axis joystick + 10 point touch screen
Touch Display Specs	292mm (W) x 201mm (H) \| Resolution: 2736 x 1824
Processor	Dedicated Intel Core i7 processor, 128GB SSD per console

Physical Dimensions & Power

Metric	Measurement
Chair Dimensions	1360mm (W) x 1066mm (D) x 1371mm (H)
Weight	45 kg (per chair unit)
Adjustability	35 degree tilt, adjustable headrest, backrest, leg rest
Voltage	100-240V, 50/60Hz (auto sensing power supply)
Operating Temp	0 C to 40 C
Connectivity	IPv4/IPv6 support \| 1x 10/100/1G Ethernet

Warranty: 1 year standard. Maintenance contracts available (1 or 3 year commitments).
